DropAir Mini 6S Smart Thermostat Adapter

Upgrade your existing air conditioner with the Dropair Mini 6s, a compact smart thermostat adapter designed to connect selected inverter, VRV and VRF AC systems with compatible 24V smart thermostats, including Google Nest and Ecobee.

With the correct AC-specific configuration, this adapter makes smart temperature control possible without replacing your existing air conditioning system.

• Supports selected inverter, VRV, VRF and split AC systems.
• Compatible with supported Google Nest, Ecobee and other 24V thermostats.
• Built-in 24V AC thermostat power output.
• Cooling, heating and multi-speed fan control where supported.
• Compact design with model-specific wired communication.
• Compatibility guidance and professional installation available across the UAE.

Before ordering: Share your AC brand, indoor unit model and existing thermostat details with JustCare to confirm the correct adapter.

Dropair Mini 6s – Smart Thermostat Adapter for Inverter and VRF AC Systems

Thinking about replacing your old air conditioning controller with a Google Nest or Ecobee smart thermostat? The Dropair Mini 6s makes this upgrade possible for selected air conditioning systems that cannot communicate directly with a conventional 24V smart thermostat.

Many inverter, VRV and VRF air conditioners rely on manufacturer-specific communication protocols. Although these systems may work perfectly with their original controllers, connecting a modern smart thermostat is not always straightforward.

The Dropair Mini6S adapter provides a communication interface between a supported AC indoor unit and a compatible smart thermostat. This allows you to modernize your temperature controls while retaining your existing air conditioning equipment.

Available through JustCare in the UAE, the Dropair Mini 6s is suitable for selected residential and commercial installations where the AC model and communication interface have been confirmed as compatible.

Why Choose the Dropair Mini 6s?

Connect Your AC to a Smart Thermostat

A smart thermostat can make everyday temperature management more convenient, but not all AC systems use the conventional wiring these thermostats expect.

The Dropair Mini 6s acts as a bridge between supported AC communication systems and compatible smart thermostats. This makes it a practical Nest thermostat adapter for AC applications and an Ecobee thermostat adapter for selected HVAC configurations.

Once properly installed, the connected smart thermostat can provide supported features such as:

• Temperature adjustments through the thermostat.
• Mobile app control when supported by the connected thermostat.
• Daily and weekly temperature schedules.
• Cooling and heating mode control where available.
• Compatible fan speed settings.
• Supported smart-home and voice-assistant integrations.

The Mini 6s itself does not provide Wi-Fi connectivity. App control and other connected features depend on the thermostat you choose.

If you are choosing a thermostat for your AC system, explore JustCare’s smart thermostats in UAE to compare available options.

Designed for Compatible Inverter and VRF Air Conditioners

Unlike many conventional AC systems, inverter and VRF equipment may use digital communication between the indoor unit and its original controller.

The Dropair Mini 6s provides an interface for selected systems using supported communication connections. In an appropriate installation, the adapter enables control through a 24V thermostat while the original AC system continues to manage its own internal operation.

This makes the Mini 6s useful as an inverter AC thermostat adapter and VRV/VRF thermostat adapter when the correct manufacturer-specific configuration is available.

Compatibility must be checked by AC model. Not every inverter, VRV or VRF system can use the same adapter or firmware.

Built-In 24V AC Thermostat Power

The Dropair Mini 6s includes a built-in 24V AC output designed to support compatible smart thermostats. The adapter itself operates from a 100–240V AC power supply.

For suitable installations, this provides the low-voltage thermostat power needed without requiring a separate standard 24V transformer.

However, certain installations may need additional electrical components or a separate transformer to address site-specific power and interference conditions. A technician should confirm the correct arrangement before installation.

Cooling, Heating and Fan Speed Control

The Dropair Mini 6s supports several common AC control functions when these are available from the connected equipment and thermostat.

Supported configurations may include:

• Switching cooling on and off.
• Heating control on suitable heating and cooling systems.
• Temperature setpoint management.
• Low, medium and high fan speed selection.
• Thermostat-based operating schedules.

For cooling-only systems, the thermostat can be configured without heating functions. Multi-speed fan operation depends on the selected thermostat, wiring and AC model.

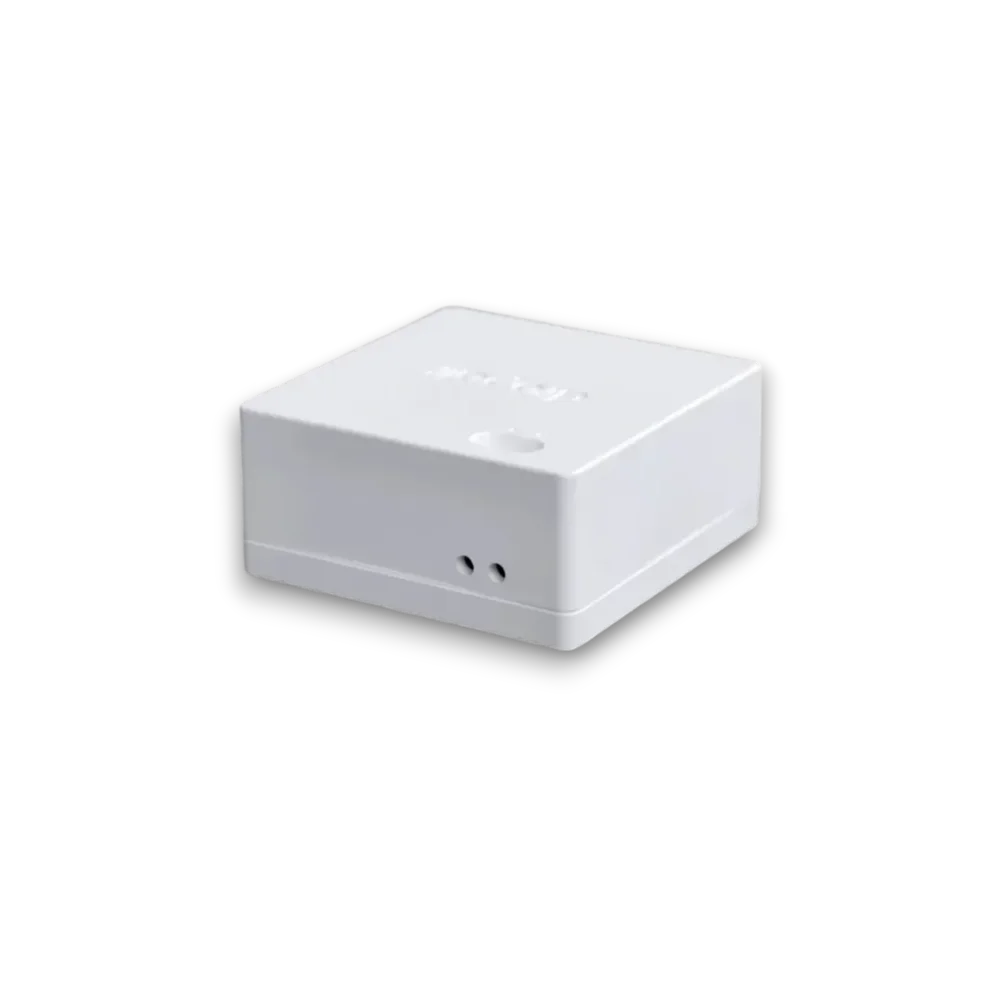

Compact Design for Discreet Installation

Measuring only 54 × 54 × 24.5 mm, the Dropair Mini 6s is designed for installation in suitable spaces near the thermostat wiring or AC equipment.

Its compact housing allows technicians to plan a neat installation while keeping the visible wall area focused on the smart thermostat.

Installation location, wiring access and electrical safety requirements must be assessed before positioning the adapter.

Dropair Mini 6s AC Compatibility

The Dropair Mini 6s supports selected air conditioning systems from several major manufacturers. The exact compatibility depends on the indoor unit model, existing remote controller, connection type and firmware.

Supported configurations documented for the Mini6S family include selected systems from:

• Daikin: Compatible P1/P2 systems and selected S21, S403 or other supported configurations.
• Mitsubishi Electric: Selected MA remote, M-NET and supported connector arrangements.
• Samsung: Selected systems using F3/F4 communication terminals.
• Fujitsu / O General: Supported controller connections and selected indoor unit interfaces.
• LG: Selected systems that support the required wired controller arrangement.
• Carrier: Supported two-wire controller systems.
• Toshiba: Compatible two-wire controller configurations.
• Other brands: Selected models from Gree, Panasonic, Hitachi, York, Trane, Lennox, Haier, Hisense and Mitsubishi Heavy Industries.

Important: This list does not mean that every AC model from these brands is compatible. Some systems require a different Dropair adapter, connector or firmware version.

Dropair Mini 6s for Daikin AC Systems

Daikin uses different control interfaces across its VRV, VRF, split and multi-split air conditioners. The correct Dropair solution depends on the available connectors and existing controller.

For example, Daikin VRV systems with supported P1/P2 terminals may use the Dropair DK-P1P2 adapter, while selected Daikin multi-split systems with an S21 connector may require the Dropair DK-S21 adapter.

Both solutions use Mini6S-family hardware in their documented configurations, but they are intended for different AC connections. Confirm the specific Daikin model before selecting either option.

Compatible Smart Thermostats

The Dropair Mini 6s is designed to connect with selected 24V smart thermostats through its supported wiring interface.

The manufacturer’s installation manual documents connections for:

• Google Nest Learning Thermostat 2nd Generation.
• Google Nest Learning Thermostat 3rd Generation.
• Google Nest Thermostat E and selected Nest Thermostat models.
• Supported Ecobee smart thermostats.
• Honeywell Lyric and selected other 24V HVAC thermostats.
• Selected compatible Tuya-based 24V thermostat configurations.

Newer thermostat generations should be checked individually rather than assumed compatible.

For a documented Nest option, view the Nest Learning Thermostat 3rd Generation. If you prefer Ecobee, explore the Ecobee smart thermostat range.

Dropair Mini 6s Technical Specifications

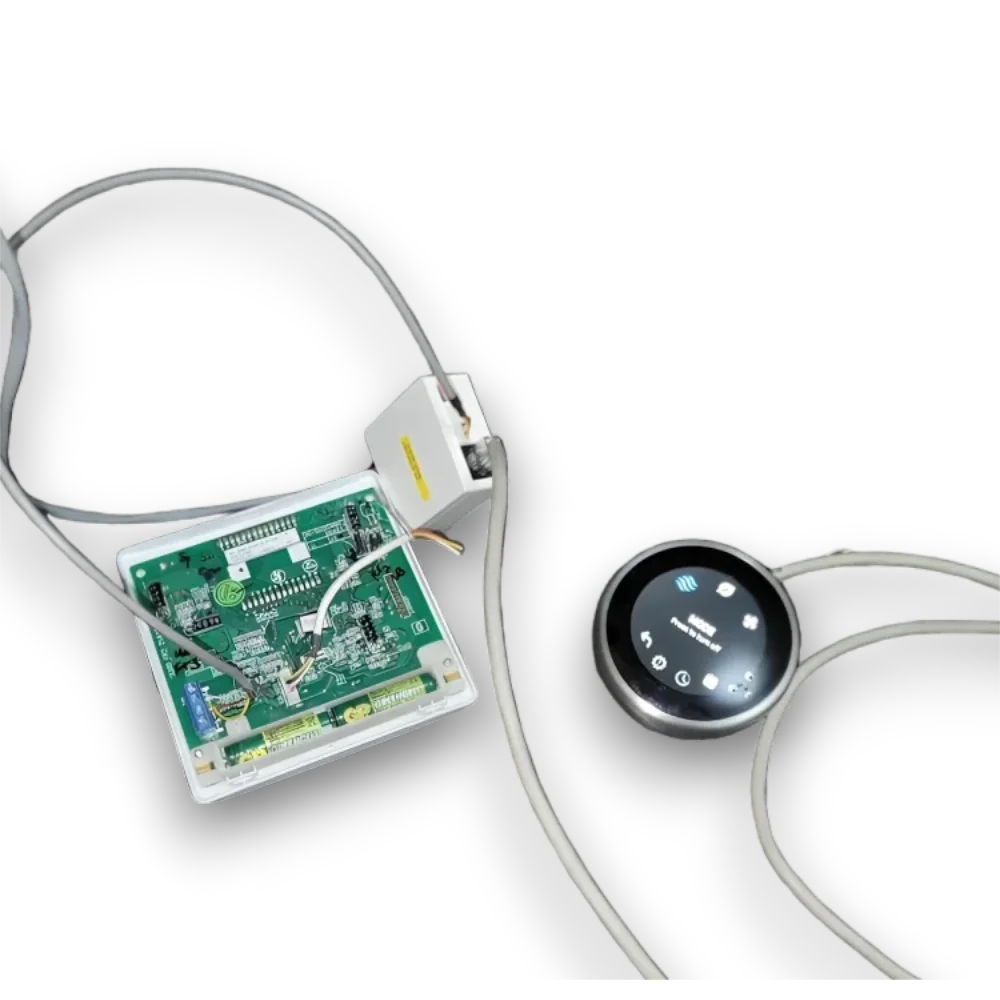

How Does the Dropair Mini 6s Work?

The adapter connects a supported air conditioning control interface to a compatible 24V smart thermostat.

1. Compatibility assessment: Identify the AC brand, model, existing controller and communication connection.
2. Adapter selection: Confirm the Mini 6s hardware, firmware and required connection cable.
3. Electrical installation: Connect the adapter to an appropriate power supply and supported AC interface.
4. Thermostat connection: Connect and configure the compatible smart thermostat using the correct wiring.
5. Testing: Check cooling, heating and fan operation as applicable before completing the installation.

Because the adapter connects to HVAC control equipment and requires mains power, installation should be performed by a qualified technician.

For a broader explanation of wiring, voltage and AC compatibility, read our smart thermostat installation and AC compatibility guide.

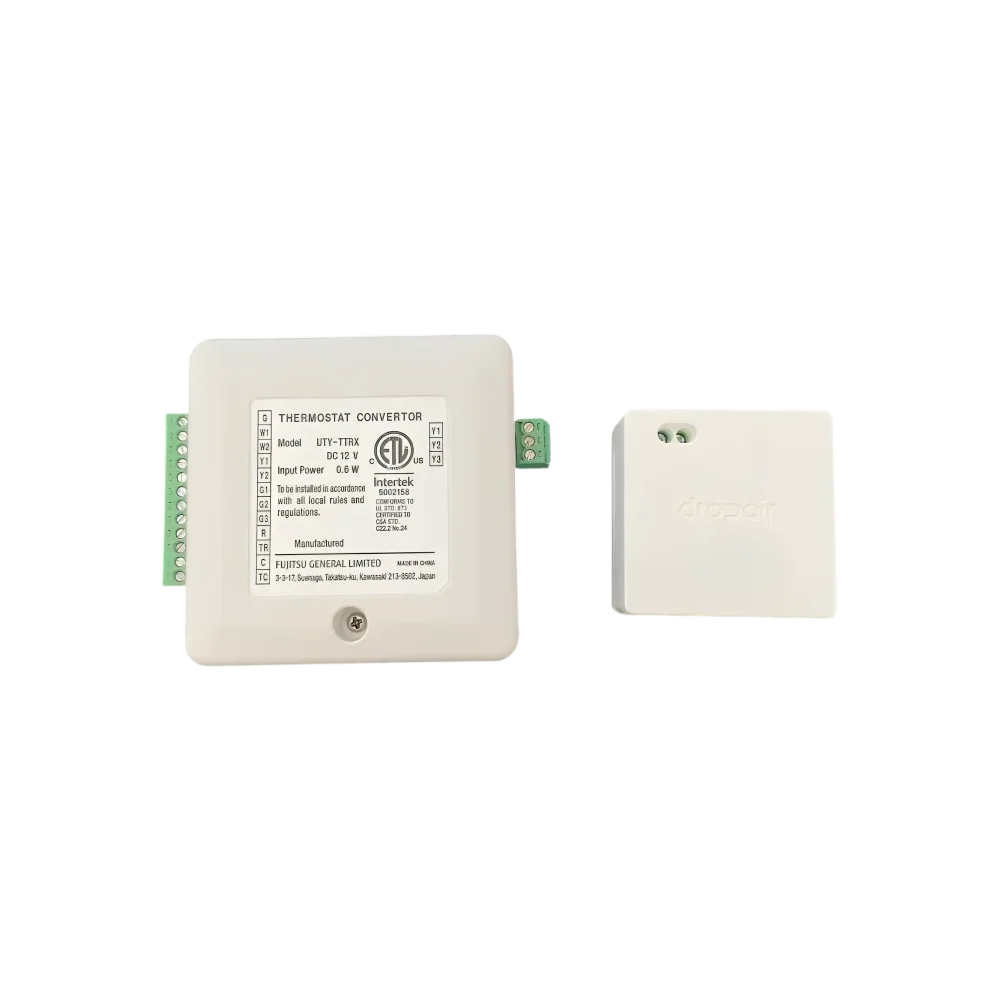

Dropair Mini 6s vs a Standard 24V Thermostat Converter

Not every air conditioner requires the same type of thermostat interface.

A conventional AC control system may need a standard 24V conversion solution, while a digitally controlled inverter, VRV or VRF system may require a specialized communication adapter such as the Dropair Mini 6s.

Choosing the correct device depends on the AC control method, not simply the voltage printed on the existing wall thermostat.

If your system uses conventional controls rather than a supported digital communication interface, see JustCare’s 24V Thermostat Conversion Kit as an alternative to discuss during compatibility checking.

Dropair Mini 6s Installation in Dubai and Abu Dhabi

JustCare supplies smart thermostat products and compatible HVAC adapter solutions for customers in the UAE, with professional installation support focused on Dubai and Abu Dhabi.

Our team can assess the existing AC controller, identify an appropriate adapter solution, complete compatible wiring and configure the smart thermostat for the available functions.

We recommend confirming the exact requirements before ordering because the installation method and accessories vary between air conditioning systems.

To understand the available service options, visit our smart thermostat installation service in UAE.

Frequently Asked Questions

What is the Dropair Mini 6s used for?

The Dropair Mini 6s is a communication adapter used to connect selected air conditioners with compatible 24V smart thermostats. It is particularly useful for supported systems with proprietary AC control interfaces.

Does the Dropair Mini 6s work with inverter AC systems?

Yes, it supports selected inverter AC systems. The exact AC brand, indoor unit model and control interface must be checked before purchase.

Is the Dropair Mini 6s compatible with Google Nest?

The manufacturer documents compatibility with selected Google Nest thermostats, including the Nest Learning Thermostat 3rd Generation. Other Nest models require individual compatibility confirmation.

Can I connect an Ecobee thermostat using the Mini 6s?

Yes, supported Ecobee thermostats can connect through an appropriately configured Dropair Mini 6s. The available features depend on the Ecobee model and AC system.

Does the Mini 6s provide Wi-Fi control?

No. The adapter itself is a wired communication device. Wi-Fi control, app access and scheduling are functions of the compatible smart thermostat.

Does every Daikin AC require the Mini 6s?

No. Daikin systems use different control interfaces. Some require a Mini6S-based P1/P2 or S21 solution, while others need a different Dropair configuration.

Can the Mini 6s replace a standard 24V thermostat conversion kit?

Not in every installation. A standard converter and the Mini 6s serve different AC control requirements. A compatibility assessment is necessary to identify the appropriate product.

Do I need professional installation?

Professional installation is recommended because the adapter requires electrical power, model-specific communication wiring and smart thermostat configuration.

Where can I buy the Dropair Mini 6s in UAE?

You can enquire about the Dropair Mini 6s through JustCare. We provide product guidance and installation support for suitable AC systems in Dubai, Abu Dhabi and other supported UAE locations.

Buy Dropair Mini 6s in UAE from JustCare

Before purchasing, make sure the Dropair Mini 6s is the correct adapter for your air conditioner and chosen smart thermostat.

For a compatibility assessment, send us:

• Your AC brand and indoor unit model number.
• A clear photo of the existing thermostat or remote controller.
• The smart thermostat brand and model you want to install.
• The number of AC units requiring control.
• Your property location in the UAE.

JustCare can help identify the appropriate Dropair configuration and explain the installation requirements before you proceed.

Ready to upgrade your AC control? Contact JustCare on WhatsApp to check compatibility and request a quotation.
