The Dropair Pro 6x connects compatible VRV and advanced HVAC systems with Google Nest, Ecobee and other supported smart thermostats for convenient temperature and AC control.

4 payments No interest. No fees.
Genuine All devices
Order via WhatsApp in minutes
Free return within 7 days
Every day, 9:00 AM – 6:00 PM (Dubai time)
Every day, 8:00 AM – 1:00 AM the following day (Dubai time)
Join hundreds of UAE residents who trust JustCare for their smart home needs.
Fill out the form, and we’ll get back to you within 24 hours
+971 58 220 0508
contact@justcare.tech
Every day, 9:00 AM – 6:00 PM (Dubai time)
Every day, 8:00 AM – 1:00 AM the following day (Dubai time)
For urgent technical support, contact us on WhatsApp daily from 8:00 AM to 1:00 AM the following day (Dubai time).
The Dropair Pro 6x connects compatible advanced HVAC systems with Google Nest, Ecobee, and other supported smart thermostats. Designed for selected VRV and specialized fan-motor applications, it enables convenient temperature control without replacing compatible existing equipment.
Want to install a Google Nest or Ecobee thermostat on an air conditioning system that doesn’t support conventional smart thermostat wiring? The Dropair Pro 6x provides a specialized interface for selected HVAC systems that need more than a standard thermostat connection.
Many commercial and residential air conditioning systems use dedicated control interfaces, multi-component arrangements or specialized fan motors. These can make connecting a conventional 24V smart thermostat more complicated than replacing an ordinary wall controller.
The Dropair Pro6X adapter is designed to help bridge this compatibility gap. With the correct configuration, it allows a supported smart thermostat to communicate with compatible HVAC equipment while retaining the existing system.
For apartments, villas, offices and commercial properties in the UAE, the Pro 6x offers a practical option for modernizing selected air conditioning controls without necessarily replacing the complete HVAC system.
The Pro 6x is designed for HVAC installations where the existing control system cannot be connected directly to a conventional smart thermostat.
It provides a communication interface between suitable air conditioning equipment and supported 24V thermostats, including documented Google Nest configurations.
Depending on the thermostat and HVAC configuration, this can provide access to useful features such as:
The adapter itself is not documented as a standalone Wi-Fi controller. Connected features depend on the smart thermostat and its supported integrations.
Explore JustCare’s smart thermostats in UAE to compare available thermostat options.
Some VRV systems communicate with their original controllers through manufacturer-specific terminals rather than standard thermostat wiring.
Dropair’s installation documentation shows a Pro6X connection arrangement for selected Daikin, Hitachi, Hisense and York VRV systems using the documented HBS solution.
This allows the Pro 6x to serve as a specialized smart thermostat interface for suitable HVAC installations.
However, not every VRV, VRF, inverter or ducted air conditioner uses the same control interface. The exact indoor unit model and controller connection must be checked before selecting the adapter.
HVAC systems can use different types of fan motors, and the required thermostat adapter depends on how those motors receive their speed-control signals.
The Dropair Pro6S service documentation specifically identifies the Pro6X as the adapter to consider when the fan coil unit uses a 0–10V DC-controlled fan motor.
This makes the Pro 6x relevant to selected advanced fan coil unit (FCU) applications that require compatible motor-control integration.
Because 0–10V systems vary in their wiring, control signals and electrical requirements, the correct Pro6X configuration must be verified for the individual installation.
The Dropair Pro 6x includes a built-in 24V AC output designed for supported low-voltage smart thermostat connections.
According to the manufacturer’s specification, the adapter uses a 100–240V AC input supply and provides a 24V AC, 60Hz output.
This can simplify the power arrangement in suitable installations because the required thermostat supply is integrated into the adapter.
Additional components may still be necessary where the HVAC equipment, existing wiring or thermostat requires a specialized configuration.

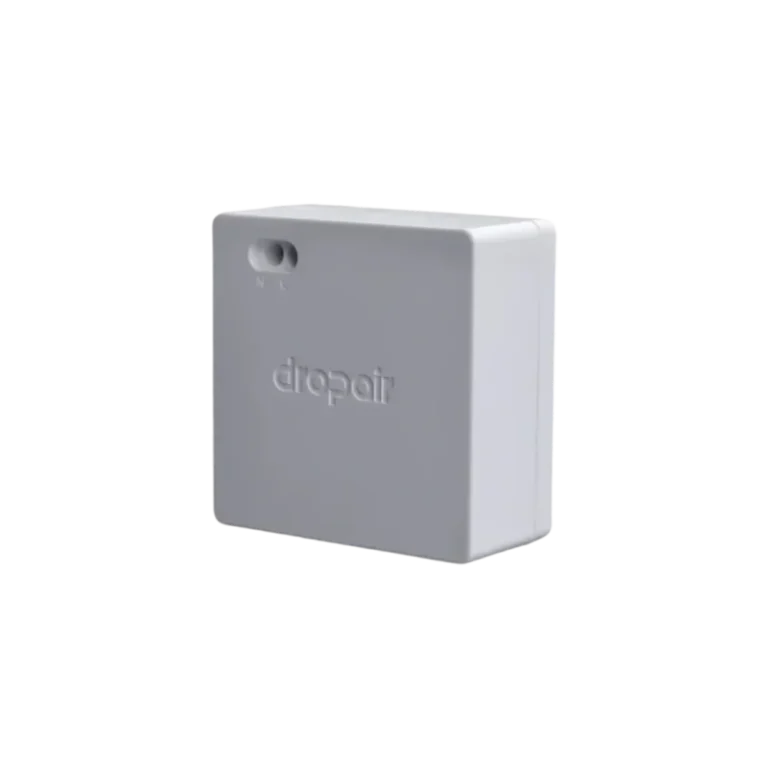

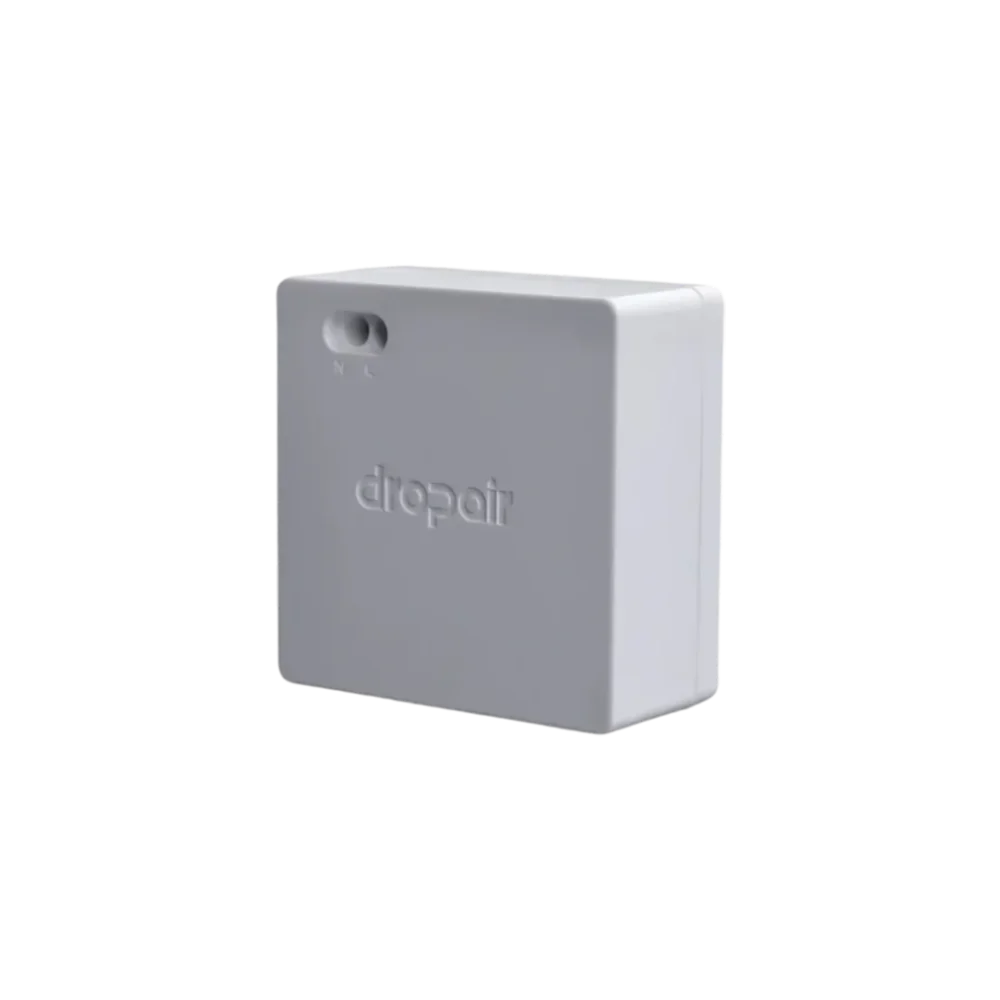

The Dropair Pro 6x has a compact white enclosure measuring 54 × 67.5 × 24.5 mm, allowing it to be positioned in an appropriate electrical installation space.
Its design is suited to professional retrofits where existing equipment is being adapted to work with a modern thermostat.
Red and green LED indicators provide visual feedback to help technicians check power and thermostat-control signals during installation.
Replacing a complete air conditioning system may not be necessary simply because its original thermostat lacks modern connected features.
For compatible installations, the Pro 6x makes it possible to introduce a suitable smart thermostat while retaining the existing indoor unit and supported control equipment.
This can be useful for homeowners, property managers and businesses planning a smart thermostat upgrade while keeping their current HVAC system.
The Dropair Pro 6x is intended for selected HVAC control arrangements. Compatibility depends on the existing equipment, thermostat interface and required adapter configuration.
Documented Pro6X applications include:
Important: These are configuration-specific applications, not universal compatibility guarantees. The exact AC or FCU model must be checked before purchase.
The Dropair Pro 6x provides a 24V AC thermostat interface for compatible smart thermostat configurations.
Documented Dropair integration arrangements include Google Nest and other supported 24V thermostat families. Individual thermostat models, especially newer generations, require compatibility confirmation.
Thermostat options to assess include:
You can view the Nest Learning Thermostat 3rd Generation or browse our Ecobee smart thermostat collection.
Confirm the selected thermostat and AC system together before ordering either product.
| Product Name | Dropair Pro 6x |
|---|---|
| Model | Pro6X |
| Product Type | Smart HVAC thermostat adapter |
| Input Power | 100–240V AC, 1A, 50/60Hz |
| Thermostat Output | 24V AC, 60Hz |
| Dimensions | 54 × 67.5 × 24.5 mm |
| Weight | 80 g |
| Color | White |
| Housing Material | ABS + PC FR3010 |
| No-Load Power | 1.2W |
| Status Indicators | Red and green LEDs |
| Thermostat Interface | CAT6 / RJ45 connection |
| HVAC Connection | Model-specific control interface |
| Installation | Professional installation recommended |
Technical values are taken from the Dropair installation and service documentation. Verify the supplied Pro6X hardware revision, firmware and required accessories before installation.
The Pro 6x acts as an interface between compatible HVAC equipment and a supported smart thermostat.
For general information about thermostat wiring and system preparation, read our smart thermostat installation and AC compatibility guide.
The Dropair Pro 6x and Pro 6s belong to the same adapter family, but the available technical documentation identifies different application requirements.
The Pro6S documentation focuses on compatible chilled-water fan coil units with AC fan motors and supported 24V, 220V and 0–10V valve arrangements.
The Pro6X is separately documented for selected advanced HVAC control arrangements, including certain VRV connections. The Pro6S manual also directs systems with 0–10V DC fan motors toward the Pro6X.
The correct adapter should be selected according to the existing motor type, thermostat wiring and HVAC communication requirements rather than choosing by product name alone.
Advanced HVAC thermostat integration requires careful compatibility assessment, especially when the system uses specialized control interfaces or fan-motor signals.
JustCare provides smart thermostat installation and compatibility guidance for suitable residential and commercial air conditioning systems across the UAE.
Dubai and Abu Dhabi are our primary installation service areas. Other UAE locations may be supported depending on technician availability and project requirements.
Our installation assessment considers:
Learn more about JustCare’s smart thermostat installation services in UAE.
The Dropair Pro 6x is a smart thermostat adapter designed for selected advanced HVAC systems. It provides a compatible interface between supported HVAC control equipment and suitable smart thermostats.
Dropair’s documentation includes a Pro6X configuration for connecting a Nest Learning Thermostat with selected VRV systems. The exact Nest model and HVAC connection must be verified before installation.
Ecobee compatibility should be confirmed for the specific Pro6X configuration and thermostat model. The Pro6X provides a 24V AC thermostat interface, but this does not guarantee support for every Ecobee model or HVAC function.
It may be suitable for selected advanced HVAC configurations, including certain VRV systems. Compatibility with a particular inverter AC depends on its control interface and the available Pro6X configuration.
The manufacturer’s Pro6S documentation identifies Pro6X as the model to consider for systems using 0–10V DC-controlled fan motors. The exact wiring and motor compatibility must be confirmed.
The available installation manuals list them as separate adapter models and identify different compatibility requirements. They should not be treated as interchangeable without confirmation.
The adapter itself is not documented as a standalone Wi-Fi controller. Remote access and mobile app functions are provided through a compatible connected smart thermostat.
Multi-unit installations require a system-specific design. Do not assume that a single adapter can independently control several indoor units without confirming the supported wiring and control arrangement.
Yes, professional installation is recommended because the adapter requires electrical connections, model-specific configuration and HVAC control testing.
You can enquire about the Dropair Pro 6x through JustCare. Send your HVAC system details so compatibility, availability and installation requirements can be confirmed before ordering.
Looking for a smart thermostat adapter for your existing HVAC system?
Before purchasing the Dropair Pro 6x, send JustCare:
We’ll review the available information and help identify an appropriate adapter and installation solution.
Need a compatibility check or quotation? Contact JustCare on WhatsApp.
